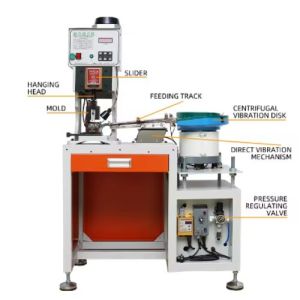

Automatic Single Terminal Feeding & Crimping Machine

Automatic Single Terminal Feeding & Crimping Machine

2.76 Lac / Piece

1 Piece (MOQ)

Piece

Edit

Business Type	Manufacturer, Exporter, Supplier
Material	Stainless Steel
Driven Type	Electric
Brand Name	Indoe Enterprises,Indoe Enterprises,Indoe Enterprises
Click to view more

Preferred Buyer From

Location

Worldwide

Product Details

Voltage

220V

Color

Light White

Country of Origin

India

Power

120 W

Model No

IE-009

Terminal Type

Individual Terminal

Crimping Pressure

Stroke

30mm

Output

7200 Pcs/Hr

Packaging Type

Wooden Packaging

Type

crimping

Size

26mm

Warranty

1 year

Port

transport, supliear

Payment Terms

Other

Delivery Time

1-5 days

Packaging Details

Soft foam + wooden box for the wire terminal crimping machine

More specifications and parameters.

The following configuration list has different pressure numbers for different specifications. It is for reference only. The actual product shall prevail.

model	size	weight	Wire diameter diameter	Power	Stripping length	Minimum cutting depth	Productivity
ZJ-480ZD	4508501360MM	380KG	0.81-10MM	110-220V/50HZ/380W	0.1-60MM	0.01MM	500-700PCS/H

1. Based on the silent terminal machine, using cassette molds,easy and convenient to disassemble; 2. Microcomputer chip control, humanized program design,safe and reliable operation; 3. Replace expensive chain terminals and use more economical loose terminals; 4. Centrifugal vibration feeding,frequency conversion speed regulation,precise positioning of cylinder,unified riveting standard; 5. The operating speed is comparable to that of the chain terminals,saving labor and cost,and having more cost-effective advantages;

Automatic Single Insulated Terminal crimping machine

Short Description:

SA-F2.0T Single Insulated Terminal crimping machine with automatic feeding function,It is design for crimping loose / Single terminals ,vibration plate Automatic Smooth feeding terminal to crimping machine. We Just need manual put the wire into terminal , then press foot switch ,our machine will start crimping terminal automaticly , It best solves the problem of single terminal difficult crimping problem and Improved wire process speed and save labor cost.

Advantage

1. Microcomputer chip control : personalized program design, safe and reliable operation;
2. Centrifugal vibration feeding : frequency control of motor speed, accurate positioning of cylinder, and standard riveting;
3. Motor: Copper core stepper motor with high precision, low noise and longer service life.
4. OPT Applicator : it’s applicable tovertical, horizontal mould, 4 side mould etc .
5. Full English Display : Easy to operate.
6. Warranty : Machine with one year warranty, And free provide sample test and operate video guide.
