Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Indoe Enterprises |
| Material | Stainless Steel |
| Finishing | Coated |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Color
White
Condition
New
Automatic Grade
Fully Automatic
Power Source
Electric
Power Consumption
110/220VAC,50/60Hz
Usage
Industrial
Certification
ISO 9001:2008 Certified
Voltage
220V
Packaging Type
Wooden Box
Cutting Capacity
29-9900mm
Wire Diameter
Wire diameter >2.5MM
Dimension (LxWxH)
130*60*200cm
Machine Weight
300-400kg, 360kg
Corrosion Resistance
Yes
Motor
0.75Kw Three-phase Asynchronous Motor, Variable Frequency Control (optional 1.5Kw/2.2Kw)
Stripping Range
0.5-20 mm
Touch Control
7-Inch KINCO Color LCDTouchable
Cutting Tolerance
When the Wire Length is ≥ 1000mm,± 0.4%.the Longer/Thicker the Line.
Twisted Wire Length
2-20 mm
Cutting Length
26-9900mm (Custom Rubber 20mm)Program Control Arm Eight Axis Control Card
Crimping Force
Standard 2T 30 Stroke
Adapt to Wires
1007 AWG up to 4.0mm (Single Wire) 20-30 # (Double Wire) 18-30 # (Parallel)
Electrical Support
AC 220V 2.0Kw Air: 0.4-0.6 MPa
Processing Capacity
Within 300 mm, 3700PCS/H (Dual Wire)
Equipment Size
Length 720 x 850 Width x 1650 Height mm
Weight
265 Kg
Port
transport, supliear
Payment Terms
Other
Delivery Time
1-5 days
Automatic wire cutting, strippinging, one end crimping terminal
Operation interface
Bilingual
Applicable wire range
AWG #30~#20
Air Pressure
0.5 -0.6MPA
Capacity
3500-3800pcs/hour(When the wire length is 300mm)
Wire length
26mm~9900mm
Twisting length
3-20mm
Stripping length
0.5-20mm
Tinning length
0.5-20mm

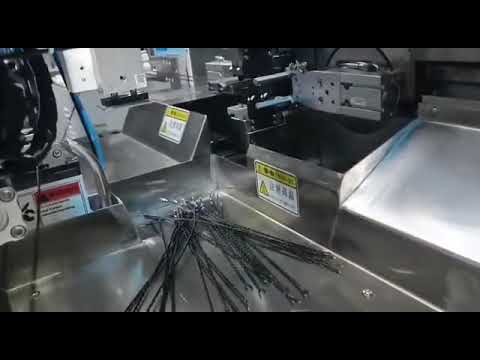

Full automatic single /double Wire cutting and striping terminal crimping tin machine, single head automatic crimping terminal the other head stripping twisting tin dip machine for Copper wires. This machine have two model , SA-CZ100 for Single wire and SA-CZ200 for two wire ,It’s Greatly Improved stripping speed and save labor cost.
1.Micro-computer controlled system, high accuracy wire cutting stripping.
2.Wire cutting, stripping Twtisting tinning and crimping are completed one time.
3.English LCD screen easy operation
4.Function: wire cutting, single-end stripping, double-end stripping, single-end twisting,
1.Micro-computer controlled system, high accuracy wire cutting stripping.
2.Wire cutting, stripping Twtisting tinning and crimping are completed one time.
3.English LCD screen easy operation
4.Function: wire cutting, single-end stripping, double-end stripping, single-end twisting,
|
Model
|
SA-CZ100
|
SA-CZ200
|
|
Available Wire Size
|
Wire diameter >2.5MM
|
wire diameter <2.5MM
|
|
Available Wire
|
Process 1 wire at one time
|
Process 2 wire at one time
|
|
Cutting Length
|
29-9900mm ( Other can customized )
|
|
|
Length Tolerance
|
≥1m,±0.002%
|
|
|
Stripping Length
|
0.5mm~10mm
|
|
|
Twisting Length
|
0.5mm~10mm
|
|
|
Tinnig length
|
0.5mm~10mm
|
|
|
Machine Production Rate
|
About 4200 pcs/h
|
|
|
Detection Device
|
Lack wire detection, Lack terminal detection, Crimp detection, Pressure detection
|
|
|
Air Connection
|
0.5-0.7MPa
|
|
|
Power Supply
|
110/220VAC,50/60Hz
|
|
|
Weight
|
About 260kg
|
|
|
Dimensions
|
130*60*200cm
|
|
