IE-038 Scrap Wire Striping Machine

43,500.00 / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Automation Grade Scrap
Material Stainless Steel
Automatic Grade Automatic
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Outlet Diameter
1mm To 42 Mm
Voltage
220V
Color
Blue
Brand Name
Indoe Enterprises
Country of Origin
India
Model Number
IE-038
Power
1HP/.5HP
Wire Range
0.5-40 mm
Blade
10
Production
300-450 Kg
Weight
38 Kg
Hole
11
Size
580*280*370mm
Power Supply
AC 220V / 110V, 50/60 Hz
Usage
Stripping
Packaging Type
Wooden Packaging
Type
scrap wire
Warranty
1 year
Range
0.5 -40mm
Product Code
IE-038
Port
transport, supliear
Payment Terms
Other
Delivery Time
1-5 days
Packaging Details
Packaging Details Seaworthy package for Electric Wire Stripping Machine Automatic Wire Stripping Machine Strips Scrap Copper Wire


Port Shanghai port or other port can be choose
Selling Units: Single item
Single package size: 53X26X39 cm
Single gross weight: 350.000 kg

1 HP Motor Single Phase Machine Price = 43500+18% Gst Extra

◼︎According to the diameter of the wire, select the appropriate wire entry hole for wire stripping treatment. There are 11 holes to choose from, with a diameter range of 1-38mm.

◼︎ When stripping wire, the center of the blade must be collinear with the center of the groove corresponding to the stripping machine roller.

◼︎ When stripping the wire, adjust the distance between the blade and the V-groove (the groove formed between the two rolling teeth) according to the thickness of the wire, so that the wire skin can be peeled off without damaging the copper core.



◼︎ If the wire stripping machine cannot strip the wire during the stripping process, there may be several reasons: ①The diameter of the stripped thread is too small. ②The center of the blade is not in line with the center of the V-shaped groove formed by the two rolling teeth.

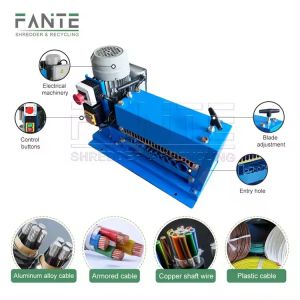

01.Blade adjustment
Adjust according to the thickness of the cable and automatically adjust the depth of the blade pressing down.

02.Control buttons
The control switch is sensitive in sensing, ensuring normal operation and convenient operation during use.
03.Alloy steel knife

High strength thickened manganese steel blade, high hardness, more wear-resistant, tough and sharp, easy to strip wire.
04.Entry hole
According to the diameter of the wire, select the appropriate wire entry hole for wire stripping treatment. There are 11 holes to choose from, with a diameter range of 1-38mm.
Name
Wire Stripper



Function
Stripping Wire



Weight
80kg



Application
Scrap Copper Wire Cable



Power supply
110V



Warranty
12 Months



Capacity
30 meters per minute



Power
370W



Range
1.5-35mm



Size
600*580*840mm
Packaging Details
Seaworthy package for 2023 New Cable Recycling Machine Automatic Waste Wire Stripping Machine Stripper Of Electric Cable

Port
Shanghai port or other port can be choose



Selling Units:
Single item



Single package size:
10X10X10 cm



Single gross weight:
500.000 kg
