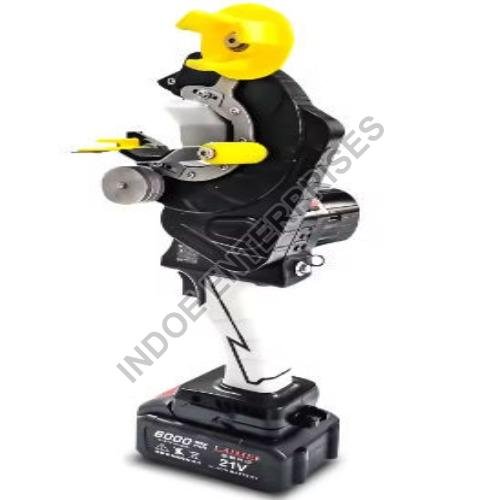

Wire Harness Taping Machine

1.65 Lac / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Driven Type Tapping Machine
Condition New
Automatic Grade Semi Automatic
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Voltage
220V
Type
Taping Machine
Warranty
1year
After-Sales Service Provided
Yes
Country of Origin
china
Support Wire Diameter
3- 35 mm
Tape Width
9-25 mm
Applicable Tapes
Flannelette, Acrylic Tape, Electrical Tape, Acetate Tape (No Release Paper)
Wrapping Speed
130 Turns/min
Tape Inner Hole Size
Ф38, other Sizes Can Be Customised
Handheld Wrapping Speed
1-4 Gear. 150, 200,350, 500 Turns/min
Desktop Wrapping Speed
Adjust Speed By Button + - OD Max Less 110 mm
Frequency
50Hz
Machine Dimension(LxWxH)
110 x 160 x 360 mm
Packing Weight
7 Kg
Packaging Type
Wooden Packaging
Product Code
IE-SC25
Port
transport , courier
Delivery Time
1 To 7 Day
Packaging Details
Packaging Details wooden box
Selling Units: Single item
Single package size: 11X16X36 cm
Single gross weight: 3.000 kg
Model Number
IE-SC25 ManualTape Wrapping Machine



Product name

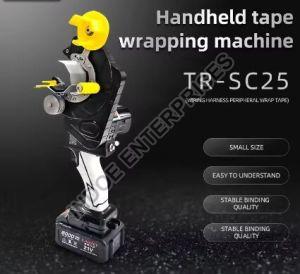

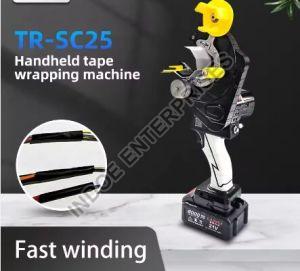

IE-SC25 Handheld Tape Wrapping Machine



Working Power
AC220V 50Hz



Working power supply
DC16V



Applicable tape width
9-25mm



Applicable tape outer diameter
≤105mm



Applicable wire diameter
8-25mm



Function

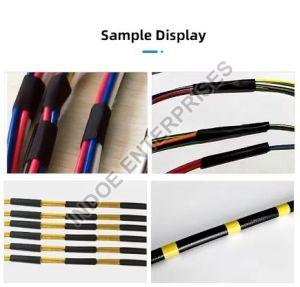

Wiring harness peripheral winding tape



Weight
about 3kg



Tape material
PVC, adhesive tape and felt



Wrap type
Full wrap, half-overlay wrap
