Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Finishing | Polished |
| Color | White |
| Condition | New |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Automatic Grade
Automatic
Power Source
Electric
Power Consumption
no
Usage
Industrial
Voltage
220V
Packaging Type
Carton Box, Wooden Box
Air Consumption
450W
Max Cutting Speed
Cutting Length 1~100000mm Stripping Length head0-99mm,tail0-50mm
Model Number
IE-CS006
Function
Flat Cable, Double Layer Stripping Machine
Cable Range
2-10 Sqmm OD
Stripping Length
Outer Tail 0.1-30 mm and Lead Strip 0.1-40 mm
Inner Stripping
2-15 mm
Cutting Length
0.1-9999 mm
Air Supply
0.4-0.7 MPa
Power Supply
220V
Production Range
1700-3000 Pcs ( on 100 mm Wire Size)
Display
Touch Type
Memory Capacity
100 Program
Weight
45 Kg
Port
transport , courier
Delivery Time
1 To 7 Day

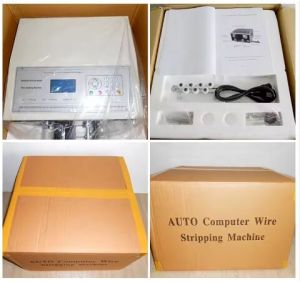

Packaging Details
Selling Units: Single item
Single package size: 54X53X41 cm
Single gross weight: 42.000 kg
Single package size: 54X53X41 cm
Single gross weight: 42.000 kg
Multicore Cable Cutting Stripping Machine. Flat Multi-core Double layer stripping, Wire Lack Detection, Full, partial and middle strip.

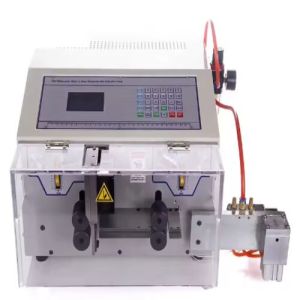

Automatic computer wire stripping machine flat flexible cable cutting and stripping machine
This flat flexible cable cutting and stripping machine is suitable for all kinds of flat cables (e.g. ribbon cables, multi-core
flat cables, etc.). It can process flat cable cutting, splitting, half-stripping, and full stripping at one time.
flat cables, etc.). It can process flat cable cutting, splitting, half-stripping, and full stripping at one time.
* This machine adopts hybrid drive and is a fully automatic CNC equipment that introduces advanced technologies from Japan andTaiwan;
* Being able to process different kinds of flat cables;
* LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision;
* Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys;
* One-time cutting and stripping, and splitting at the same time;
* Saving labor and time and increasing productivity.
* Being able to process different kinds of flat cables;
* LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision;
* Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys;
* One-time cutting and stripping, and splitting at the same time;
* Saving labor and time and increasing productivity.
Specification
|
Model Number
|
|
|
Usage
|
Stripping
|
|
Usage
|
Flat cable stripping
|
|
Wire available
|
PVC ,Teflong, glass fiber,steel wire
|
|
Stripping speed
|
3000-5000PCS/HOURS
|
|
Cutting tolerance
|
± (0.0001xL)mm
|
|
Flat wire conduit
|
100x22x2.8mm
|
|
Cutting Length
|
1~100000mm
|
|
Stripping Length
|
head0-99mm,tail0-50mm
|
|
Wire width
|
2-12P
|
|
Middle stripping cutting section
|
13
|
|
Power
|
450W
|
