Twitter| Business Type | Exporter, Supplier |
| Brand Name | Yihan |
| Driven Type | Pneumatic |
| Color | Light White |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Condition
New
Automatic Grade
Semi Automatic
Power
20w
Application
Crimping
Certification
ISO 9001:2008
Voltage
AC220
Type
Wire Crimping Machine
Weight
14 Kg
After-Sales Service Provided
Yes
Country of Origin
India
Model Number
YH-64P
Frequency
50 Hz
Dimension
250 x 200 x 330 mm
Crimping
1-30P/1-64P
Suitable For

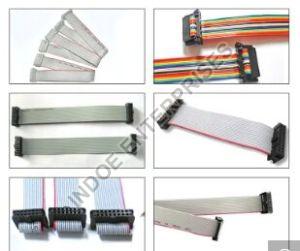

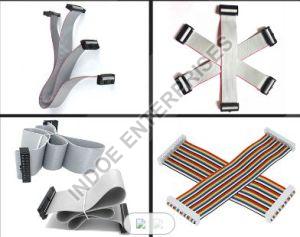

IDC Cable, Ribbon Cable
After-Sales Service
On-line Support
Packaging Type
Wooden Packaging
Port
transport , courier
Delivery Time
1 To 7 Day
Packaging Details
Package Size
30.00cm * 35.00cm * 21.00cm
Package Gross Weight
13.000kg
30.00cm * 35.00cm * 21.00cm
Package Gross Weight
13.000kg
Automatic Grade
Semiautomatic
Pin Number of Crimping
4-30p One Fixture, 30-50p One Fixture, 64p One Fix
Air Supply
6-8kg
Voltage
110/220V/50/60Hz
Machine Size
250*200*330mm
Machine Weight
14kg
Trademark
EASTONTECH
HS Code
8479819000

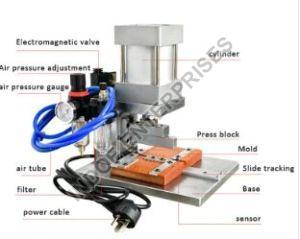

This series is a cable IDC piercing connector crimping machine,suitable for crimping 4~96Pin flat wires, and there are 3 sub-models to choose from. The base fixture is installed on the slide rail, and the fixture can be pulled out when placing IDC terminals and flat wires. After the terminal is fixed, push the jig into the crimping position and it will automatically start by induction without stepping on the foot switch. The operation is simple and the production efficiency is high. It can produce 300~600 wire ends per hour.
The whole machine is compact in structure, small in size, and weighs only about 15kg. The steel is chrome-plated, which is beautiful and does not rust. Equipped with a time relay, the pressing down time can be adjusted within the range of 1-10 seconds as required.
The whole machine is compact in structure, small in size, and weighs only about 15kg. The steel is chrome-plated, which is beautiful and does not rust. Equipped with a time relay, the pressing down time can be adjusted within the range of 1-10 seconds as required.
All products can be shipped out by express, air shipping or sea shipping and railway shipping.
How to packing:
1. Inner plastic bags with foam, outer for cartoon or wooden cases with good protect;
2. According to customer's requirements.
