Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Finishing | Polished |
| Color | White |
| Condition | New |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Automatic Grade
Automatic
Power Source
Electric
Power Consumption
400W
Usage
Industrial
Voltage
220V
Packaging Type
Carton Box, Wooden Box
Rated Current
400W
Phase
Single Phase
Warranty
1 Year
Effective Cutting Width
1mm, 5mm
Cutting Frequency
220V
Max Cutting Speed
70pcs/minute
Model Number
IE-220S
Frequency
50 Hz
Operational System
Intelligent Control
Display
LCD
Power
450 W
Cable Diameter
0.25 to 16 Sqmm
Pressure of Stripping
Adjustable
Cutting Length
1-9999 mm
Stripping Length
Front End- 0- 30mm, Back End 0-30mm
Cutting Tolerance
0.002 Length (mm)
Drive Mode
3 Wheel Drive
Stripping Speed
5000 Pcs/Hour ( Depend On Wire Size)
Speed Adjustable
0-9
Port
transport , courier
Delivery Time
1 To 7 Day
Packaging Details
Outer dimensions L418mm*W358mm*H308mm

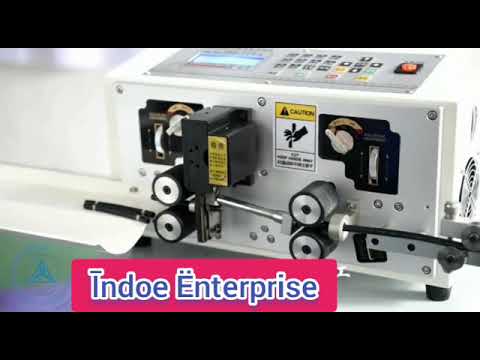

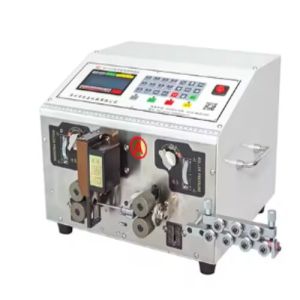

Heavy Duty Full Automatic 16 Sqmm (4.5mm) Cable cutting stripping machine
Feature:
Exceptional price to performance ratio
Intuitive, flexible and simple User-friendly english operation
Extremely low maintenance
Light and portable,High performance
High speed
Machinery Specification(automatic wire cutting stripping machine)
| Outer dimensions | L418mm*W358mm*H308mm |
| Weight | 35kg |
| Power supply | 220V |
| Power consumption(220V) |
400W |
| Display | English or Chinese interface |
| Cutting length | 0.1mm--99999.99mm |
| Cutting tolerances | ±( 0.002×L )mm L : indicates a cutting length. |
| Stripping length | 0.5mm--30mm |
| Applicable wires | PVC, glass wire,1015,1017,PVC,XPL spring wire, steel iron wire , copper wire, PVC tube, rubber pipe.ect |
| Size | 0.1-6mm2 multi strands soft wire 0.1- 1mm2 single strand hard wire |
| Wire feed speed | variable |
| Conduit diameter | 1-6mm |
| Drive supply | four-wheels drive,independent drive box driver |
| Productivity(pcs/min) | Productivity(pcs/min) |
Looking for "IE- 220S Automatic Wire Cutting & Stripping Machine" ?
