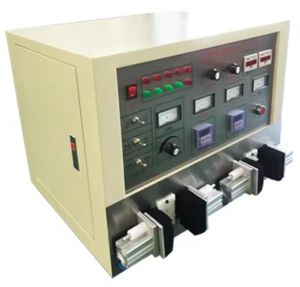

Power Cord Testing Machine

2.46 Lac / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Finishing Testing
Color White, Light White,Light White
Condition New
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Power Source
Electric
Automation Grade
Semi-Automatic
Application
Industrial
Feature
Fine Finished, Good Quality
Voltage
240 V
Packaging Type
Wooden Box
Type
Wire Testing Machine, Testing Machine,Testing Machine
Country of Origin
India,India,India
Load Weight
500g.
Polarity
Break Over, Short Circuit, Open Circuit, Dislocation
Internal High-Voltage
Output 0---5KV(500VA) Adjustable
External High-Voltage
Output 0---5KV(500VA) Adjustable
Operating Voltage
220VAC 12A 5060 HZ
Voltmeter High-voltage Range
0-5KV
Resolution
0.5 Level
Insulation Voltage
Output Voltage : DC500V
Insulation Resistance
Range:2,7,20,50,100,200MΩ
Voltage Withstand Time
Timing Range:0.1-99.9/S
Min Time for Item
Measuring :0.3S
Wire Sensitivity
>10pF
Barometric Pressure
<4 Kgf/cm2
Size
(W)730*(D)530*(H)500 (mm)
Machine Weight
68Kg
Brand
Indoe enterprises
Material
Testing machine
Warranty
1 year
Product Code
wire testing machine Power Code
Port
transport, supliear
Payment Terms
Other
Delivery Time
1-5 days
Packaging Details
Wooden Peacking
All the machines are with safety packing. Small machines would be packed into a carton box.
Large machines would be wooden case package.

Product Application:

  • Meet the standards: BSI, UL, VDE, CSA, SAA, T-MARK, KS, IRAM, CCC and other national standards.
  • Scope of application: Detecting the polarity conduction, insulation, core high voltage and copper leakage of the power cord cable.
  • Meet the standards: BSI, UL, VDE, CSA, SAA, T-MARK, KS, IRAM, CCC and other national standards
    Scope of application: Detecting the polarity conduction, insulation, core high voltage and copper leakage of the power cord cable.



    1. High quality component, modular design easy operate.
    2.Accuracy test, enhance 30% test speed compared with the other DC plus tester.
    3.Test cable type: single or double port for option
    4.Save labor cost and improved output.
    5.Automatic push out the qualify cable, and locking the defective product.
    6. Software and hardware can be customized.

    7.Test fixture tool can be customized by clients requirement, price depends.





Specifications for Power Cord Cable Tester

Technical Index Tech-Parameters

  • Leakage current: Setting Range:0.5, 1.0, 2.0, 3.0, 5.0, 10mA
  • OK Product: Automatic printing and push out, counting, and indicator ON
  • NG Product: Automatic model locking, counting, indictor ON and buzzer ringing
  • Safeguard: electric leakage, Short circuit ,overheating
  • 1. who are we?
    We are based in Guangdong, China, international trade started from 2016,sell to South America,Southeast Asia,North America, Europe. There are total about 11-50 people in our factory.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Soldering machine,wire cutting and stripping machine,terminal crimping machine,winding and tying machine,laser welding
    machine,ultrasonic welding machine.

    4. why should you buy from us not from other suppliers?
    Professional R&D and technical team support,can make OEM & ODM order,and also can provide overall laboratory solutions. Strict quality control and 1 year warrant. Short lead time and fast delivery. Fast response to your any inquires.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ;
    Accepted Payment Currency: USD,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union;
    Language Spoken: English,Chinese,Spanish.
