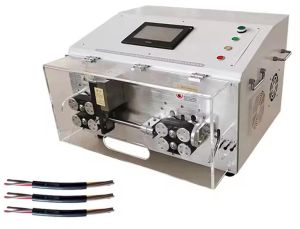

Heavy Duty 70 Sqmm Wire Cutting & Stripping Machine

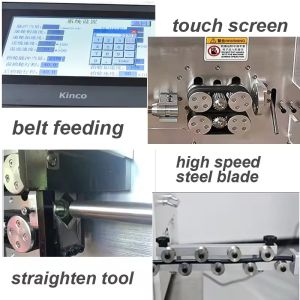

Other Details Tool materials import tungsten steel, quick-cutting steel Remark function auto feeding, auto cutting, timing start Accessory power cable*1, tool*1 set, tube some pcs, air pipe*1pcs, cable plate*1pcs 1. 7inch touch screen display, simple operation and high stability.2. Using 12pcs rollers and 4pcs belts, the contact surface between the roller and the wire is large, the wire feed is more stable, and the length is more accurate.3. It can store 100 sets of processing data for easy recall.4. The gap of the rollers is controlled by a motor, and the wire diameter is input by the keyboard, which is easy to operate.5. Synchronous adjustment of the upper and lower rollers, the center point of the blade is always the same, and there is no need to adjust the center point of the blade for wires with different diameters.6. The machine is driven by stepper motors without compressed air.7. With protection cover, ensure the worker's safety.8. Automatic wire-out, automatic wire-in. Our automatic wire harness processing machines: 1. Single end cutting stripping crimping machine. 2. Both ends cutting stripping crimping machine. 3. Three ends cutting stripping crimping machine. (2 wires crimped with 3 terminals) 4. One end crimping one end tinning machine. 5. Both ends tinning machine. 6. One end crimping, the other end crimping or tinning machine. (2 crimper, 1 solder device) 7. Both ends crimping or tinning machine. (2 crimper, 2 solder devices) 8. One end crimping and housing insertion, the other end twisting and tinning machine. 9. Both ends crimping and housing insertion machine. 10. Power cord cutting stripping crimping machine. 11. Further info please contact Sonia. Welcome inquiry.  1 Price terms The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.   2 Can I send samples to check the machine quality. Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.   3 How to learn the machine? 1) Offer free technology learning support in our factory 2) Provide detail user manual with detail video illustration 3) Support engineer service at site if clients asking for   4 How about the lead time and delivery time of order? Standard model, can be ship out within 3~5days after confirmed order and deposit. Customized model, normally lead time is 10~20 days, after confirmed all order detail deposit and got samples.  Features: 1. Touch screen display, simple operation and high stability. 2. Using 8pcs large rollers and 8pcs small rollers, with belt feeding, the contact surface between the roller and the wire is large, the wire feed is more stable, and the length is more accurate. 3. It can store 100 sets of processing data for easy recall. 4. The gap of the rollers is controlled by a motor, and the wire diameter is input on the touch screen, which is easy to operate. 5. Synchronous adjustment of the upper and lower rollers, the center point of the blade is always the same, and there is no need to adjust the center point of the blade for wires with different diameters. 6. The machine is driven by stepper motors without compressed air. 7. Silent hybrid stepping motor, feeding each step is 0.1mm. 8. Automatic wire-out, automatic wire-in, timing start.   Our automatic cutting and stripping machines: Remarks: "sqmm" means "Square millimeter", "OD" means "Outside Diameter". (1) SR-320: Small 2-wire cutting stripping machine, AWG32-14, max OD 5mm. (2) SR-360: Wire 0.1-10sqmm, max OD 8mm. (3) SR-380: Wire 0.1-16sqmm, max OD 11mm. (4) SR-50: Wire 4-50sqmm, max OD 16mm. (5) SR-70: Wire 6-70sqmm, max OD 22mm. (6) SR-150: Big wire 6-150sqmm, max OD 28mm. (7) SR-240: Big wire 6-240sqmm, max OD 45mm. (8) SR-FY905: Cutting 2-5 core cable stripping outer and inner skin, OD 1-8mm. (9) SR-8300: Cutting Multi-core cable stripping outer and inner skin, 4-30sqmm, max OD 16mm. (10) SR-8070H: Cutting Multi-core c
