IE-2T Semi-Automatic Terminal Crimping Machine

58,500.00 / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Dimension 31*46*77cm
Work Efficiency Frequency converter: 750W
Automation Grade Semi Automatic
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Net. Weight
55kg
Frequency Hz
AC110V/220V 50/60Hz
Model Name/Number
IE-1.5,2Ton,IE-2T
Available Terminals
depend on wire size terminal
Crimping Die
depend on wire size terminal
Driven Type
Electric
Color
Light White
Condition
New
Automatic Grade
Semi Automatic
Power
1.11 Kw
Weight
45 Kg
Warranty
1year
After-Sales Service Provided
yes
Power Supply
220 V
Frequency Converter
0.75 Kw
Crimping Force
2000 Kg
Packaging Type
Wooden Packaging
Port
transport , courier
Delivery Time
1 To 7 Day
Packaging Details
Selling Units: Single item
Single package size: 45X45X81 cm
Single gross weight: 55.000 kg
Features:



1.With the inverter-driven,it makes the machine without the mechanized operation delay and failure from the traditional clutch,and simplify internal mechanical parts,reduce the wearing or replacement.

Large torque,small vibration,high stability,quiet working.Ensure the right amount of force when crimping the terminals to wires.

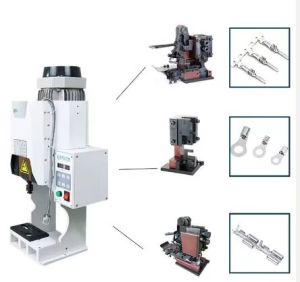

2.Can work with a variety of straight,horizontal molds,various terminals can be crimped in one machine by changing the molds.

3.There is the upward and downward punch on the panel,do not need to shake the spindle with a wrench when debugging the mold.

4.You can adjust the machine working range 1-20times,the working interval time range 0-20min.



Apply for:



Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and other various products of wire processing.

Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.



Specification:



Crimping Capacity: 2.0Ton
Stroke: 30mm standard (40mm/50mm customizable )
Terminal mold: Cross-transmission mold,direct-transmission mold
Applicable terminals : Seperated terminals,continuous termicals
Operation: Single-action pedal
Motor: Asynchronous motor AC220V 750W
Reducer: 050\1:7.5
Frequency converter: 750W
Power:  AC110V/220V 50/60Hz
Measurement: 335*215*635mm
Weight: 55kg
