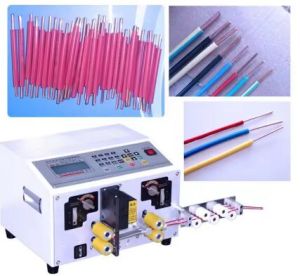

Automatic Round Wire Cutting & Stripping Machine

Automatic Round Wire Cutting & Stripping Machine

2.35 Lac / Piece

1 Piece (MOQ)

Business Type	Manufacturer, Exporter, Supplier
Finishing	Polished
Color	White
Condition	New
Click to view more

Preferred Buyer From

Location

Worldwide

Product Details

Automatic Grade

Automatic

Power Source

Electric

Power Consumption

50 Hz Single phase AC 220V

Voltage

220V

Packaging Type

Wooden Box

Rated Current

50 Hz Single phase AC 220V

Phase

Single Phase

Warranty

1 Year

Air Consumption

Cutting Frequency

50 Hz Single phase AC 220V

Cutting Accuracy

Cutting length 1~99999 mm

Model Number

IE-220NWB

Power

AC220/250V/50/60 Hz

Production Capacity

3500-5000 Pcs/Hr (Depend Upon the Cable)

Wire Size

0.5-16 Sqmm

Wire Cutting in Diameter

0.5-8mm

Cutting Length

1 mm-99999 mm

Stripping Length

2-80mm Both Side

Cutting Tolerance

±(0.2+0.003*L)mm

Port

transport , courier

Delivery Time

1 To 7 Day

Packaging Details

Packaging and delivery
Selling Units: Single item
Single package size: 50X50X40 cm
Single gross weight: 40.000 kg

Details:

Intelligent Control LCD Screen
High Speed Tungsten Steel Blade
Electronic cable, Teflon cable, silicone cable, fiberglass cable, isolation cable, coaxial cable, sheathed cable
Best for Single and Multi core wires
Specified for 2-3 Core wires

Products Description

Features: * High speed wire cutting & stripping machine for electronic cables, data cables, Shielded cables etc.
* Specially designed for 2 core round wires .
* Can cutting and stripping for jacketing and core wire both
* Easy to operate ,with data memory

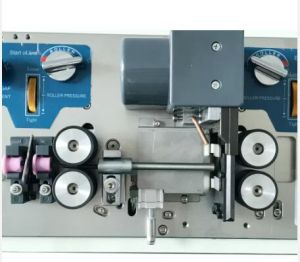

* Easy adjustment mechanisms for roller gap ,cutter Etc

MODEL
Power	50 Hz Single phase AC 220V
Wire Diameter	2~7.5 mm
Wire Type	2 Core Jacketed Wire
Cutting length	1~99999 mm
Jacket Stripping Length	0~80 mm
Core Stripping Length	1~10 mm
Cutting Speed	1~10
Weight	36 Kg
Size	450x450x360 mm
